Raman Depolarization LIDAR

The LR111-D300 model LIDAR is an active laser remote sensing instrument, designed to provide a wealth of information about the atmosphere, including unambiguous detection of volcanic ash. The system can also be upgraded to detect water vapour, allowing for remote humidity profiling. Raymetrics has been building Raman depolarization LIDARs since 2004. However the specifications of the LR111-D300 model LIDAR have been determined according to UK Met Office and EARLINET (European LIDAR Network) requirements.

A 300mm telescope and laser emitting 60mJ at 355nm make the LR111-D300 probably the most powerful eye-safe LIDAR available commercially.

Key Features

  • High energy laser emitting ~50 mJ per pulse at 355 nm
  • Large 300 mm telescope designed specifically for LIDARs
  • Range at 355 nm co-polar > 14 km at night, > 12 km during day (with SNR > 10)
  • Range at 355 nm cross-polar > 12 km at night, > 11 km during day (with SNR > 10)
  • Range at 387 nm (Raman) > 12 km at night, > 3 km during day (with SNR > 10)
  • Remotely controllable: up to 3 - 4 months unattended
  • Robust, weatherproof, double-walled enclosure with climate control
  • Rain sensor with automatically closing hatch to protect windows
  • UPS with automatic restart after power outage
  • High quality sub-com ponents used - full specs and details of all suppliers provided
  • Complete software suite including real-time display and measurement scheduling
  • Compliant with all EARLINET (European LIDAR Network) requirements
  • Eye-safe according to EU standard on laser safety 60825-1: 2007
  • Certified ISO 9001 standard

  • 3D Scanning Raman Depolarization LIDAR

    Raymetrics's 3D scanning LIDAR comes with a 200mm telescope and a laser emitting 30mJ per pulse at 355nm, making it probably the most powerful eye-safe scanning LIDAR on the market.
    The system can detect up to 3 wavelengths, including 355nm co-polar and 355nm cross-polar. It is probably the only 3D scanning LIDAR powerful enough to detect nitrogen Raman at 387nm.



  • Telescope designed by Raymetrics specifically for lidars, increasing signal efficiency by as much as 40% compared to off-the-shelf
  • telescopes
  • Optical quality glass for emitter and receiver windows to prevent chromatic aberration
  • 200 mm telescope for increased signal detection relative to smaller telescopes
  • High energy laser emitting 30mJ per pulse at 355nm for increased range and data quality compared to lower energy lasers
  • Simultaneous analogue and photon counting modes
  • Complete software package provided with unlimited licences
  • Flexible networking options - fully operable from remote network workstations via built-in Ethernet port or LAN connection
  • Controllable even over WiFi, such as from a laptop, tablet, or mobile phone
  • Real-time data display
  • 3-click solution for dropping 3D data into Google Earth for visualizing
  • Weatherproof enclosure with climate control options for almost all environmental conditions
  • Certified ISO 9001
  • Eye-safe (as according to EU standard on laser safety 60825-1:2007)
  • Measurement scheduling including the ability to program scans in any orientations


  • Custom Systems

    DIAL Systems, Telescopes, LIDAR Stations

    Raymetrics offers a custom LIDAR design service for LIDARs which cannot be built from within our standard range of modular components. These can include entire LIDAR stations, Differential Absorption LIDARs (DIAL Systems) for ozone and potentially for other gases, and LIDAR components such as specialist telescopes.

    Raymetrics telescopes are designed for LIDARs with a focal point inside the telescope (as opposed to out the back where an eye-piece would be for atronomical telescopes). This reduces size and weight and also reduces the size of the secondary mirror, resulting in reduced obscuration and up to 40% increased signal.

    Mirror coatings are designed for wavelengths beyond the visible light range (for UV and IR wavelength). Optical quality glass is also used for telescope windows, thereby reducing chromatic aberration, which is extremely important for LIDARs. Glass is also not used to focus, which also results in chromatic aberration.

    200, 300 or 400 mm telescopes are available as standard, with other custom sizes on request.

    400mm telescope with carbonfibre struts
    Differential Absorption LIDAR (DIAL System) for ozone

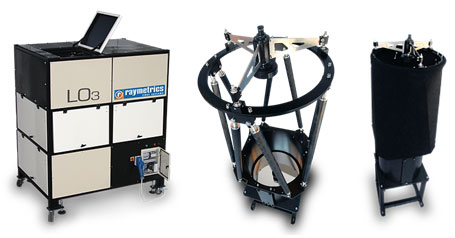

    Telescope with engineer for scale and covered telescope


    Vertical LIDARs

    Backscatter / Depolarization / Raman

    Raymetrics designs and manufactures a range of highly customizable LIDARs...


    Laser options:

  • 30mJ
  • 60mJ
  • 90mJ (at 355nm)

  • Wavelength options:

  • 355nm co-polarization
  • 355nm cross-polarization
  • 387nm nitrogen Raman
  • 408nm water vapour Raman
  • 532nm co-polarization
  • 532nm cross-polarization
  • 607nm nitrogen Raman
  • 1064nm backscatter

  • Telescope options:

  • 200mm
  • 300mm
  • 400mm
  • Others on request

  • Accessory options:

  • Climate control
  • Hatch with rain sensor
  • UPS with auto re-start after power loss
  • Laser cooled with anti-freeze for cold environments
  • Double-walled enclosure
  • Blower for windows
  • Built in GPS
  • 3D scanning options

  • Key Features

  • High energy lasers (30, 60 or 90 mJ at 355nm - up to 330mJ at 1064nm)
  • Large telescopes (200, 300 or 400 mm as standard)
  • High energy per pulse and large receivers for better data quality and increased range
  • Choice of wavelengths with upgrades available
  • Telescopes designed by Raymetrics specifically for lidars, increasing signal efficiency by as much as 40% compared to off-the-shelf telescopes
  • Optical quality glass for emitter and receiver windows to prevent chromatic aberration
  • Simultaneous analogue and photon counting modes
  • Complete software package provided
  • Flexible networking options - fully operable from remote network workstations via built-in Ethernet port or LAN connection
  • Controllable even over WiFi, such as from a laptop, tablet, or mobile phone
  • Real-time data display
  • Weatherproof enclosure with climate control options for almost all environmental conditions
  • Robust, industrial design
  • 1 year warranty
  • 3 day installation and training course on site as standard
  • Certified ISO 9001
  • Designed to be compliant with all EARLINET (European LIDAR network) recommendations for LIDAR design
